Pulsar::KnownVariableTransformation Class Reference

Manager of variable transformations. More...

#include <KnownVariableTransformation.h>

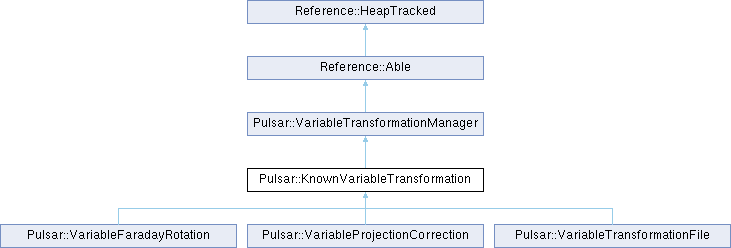

Inheritance diagram for Pulsar::KnownVariableTransformation:

Public Types
typedef MEAL::Axis< LabelledJones< double > >	KnownArgument
typedef MEAL::Value< MEAL::Complex2 >	KnownTransformation
Public Types inherited from Pulsar::VariableTransformationManager
typedef MEAL::Variable< MEAL::Complex2 >	Transformation

Public Member Functions
void	set_nchan (unsigned nchan) override
	Set the number of frequency channels with a unique Transformation.
Transformation *	get_transformation (unsigned ichan) override
	Return the Transformation for the specified channel.
MEAL::Argument::Value *	new_value () override
	Return a newly constructed Argument::Value for the current archive / subint / chan.
virtual LabelledJones< double >	get_value ()=0
	Derived classes define the known transformation.
Public Member Functions inherited from Pulsar::VariableTransformationManager
	VariableTransformationManager ()
	Default constructor.
virtual void	set_archive (const Archive *_archive)
	Set the Archive for which a tranformation will be computed.
virtual void	set_subint (unsigned _subint)
	Set the sub-integration for which a tranformation will be computed.
virtual void	set_chan (unsigned _chan)
	Set the frequency channel for which a tranformation will be computed.
virtual void	update ()
	Update the tranformation for the current archive / subint / chan.
virtual std::string	get_description () const
	Get the description of the transformation.
virtual bool	required () const
	Return true if the transformation is required.
Public Member Functions inherited from Reference::Able
	Able (const Able &)
Able &	operator= (const Able &)
unsigned	get_reference_count () const
Public Member Functions inherited from Reference::HeapTracked
	HeapTracked (const HeapTracked &)
HeapTracked &	operator= (const HeapTracked &)
bool	__is_on_heap () const

Protected Attributes
std::vector< Transformation >	xform
Protected Attributes inherited from Pulsar::VariableTransformationManager
Reference::To< const Archive, false >	archive
unsigned	subint
unsigned	chan
std::string	description
bool	built

Additional Inherited Members
Static Public Member Functions inherited from Reference::Able
static size_t	get_instance_count ()
Static Public Member Functions inherited from Reference::HeapTracked
static void *	operator new (size_t size, void *ptr=0)
static void	operator delete (void *location, void *ptr)
static void	operator delete (void *location)
static size_t	get_heap_queue_size ()
Protected Member Functions inherited from Reference::Able
Handle *	__reference (bool active) const
void	__dereference (bool auto_delete=true) const

Detailed Description

Manager of variable transformations.

Member Function Documentation

get_transformation()

KnownVariableTransformation::Transformation * KnownVariableTransformation::get_transformation ( unsigned ichan )

overridevirtual

Return the Transformation for the specified channel.

Implements Pulsar::VariableTransformationManager.

get_value()

virtual LabelledJones< double > Pulsar::KnownVariableTransformation::get_value ( )

pure virtual

Derived classes define the known transformation.

Implemented in Pulsar::VariableFaradayRotation, Pulsar::VariableProjectionCorrection, and Pulsar::VariableTransformationFile.

Referenced by new_value().

new_value()

MEAL::Argument::Value * KnownVariableTransformation::new_value ( )

overridevirtual

Return a newly constructed Argument::Value for the current archive / subint / chan.

Implements Pulsar::VariableTransformationManager.

References get_value().

set_nchan()

void KnownVariableTransformation::set_nchan ( unsigned nchan )

overridevirtual

Set the number of frequency channels with a unique Transformation.

Implements Pulsar::VariableTransformationManager.

---

The documentation for this class was generated from the following files:

• KnownVariableTransformation.h
• KnownVariableTransformation.C
